In this video, you’ll learn the fundamentals of setting up realistic exteriors using D5 Render. We also roll out the new scatter tool, which is absolutely ridiculous!
- Get started with D5 for free: https://bit.ly/3LY1RCX
- Download the finished model, visuals and d5 file here; https://shorturl.at/BQKsS
Introduction
Architectural visualization has come a long way, and tools like D5 Render are at the forefront of this evolution. In this post, we’ll walk you through a step-by-step guide on how to create stunning architectural scenes using D5 Render. Whether you’re a seasoned professional or just starting in the field, mastering these tools can significantly enhance the quality of your work and streamline your workflow.
This guide is inspired by a recent project, “Hot House,” a sauna pavilion in Massachusetts, USA, designed by Artifact Design and Construction. This project provided the perfect opportunity to explore the capabilities of D5 Render, particularly its new scatter tool, which has revolutionized how we approach landscape visualization.
Join us as we break down the entire process—from setting up your initial model in SketchUp to applying materials, utilizing D5’s powerful scatter tool, and fine-tuning your scene for the perfect render. By the end of this guide, you’ll be equipped with the knowledge to take your architectural visualizations to the next level.
Section 1: Setting Up Your Model in SketchUp
Creating the Base Model
The first step in any visualization project is setting up your base model. For this guide, we used SketchUp to create a simple yet effective model inspired by the “Hot House” sauna pavilion. While staying true to the essence of the original design, we took some creative liberties to add details that would enhance the final visualization.
Start by creating the basic structure, ensuring that your model includes key architectural elements such as cladding panels and a deck. These features are not only critical to the design but also play a significant role in the rendering process, particularly when it comes to applying materials and lighting later on.
Preparing for D5 Scatter Tool
One of the most powerful features in D5 Render is its scatter tool, which allows you to create complex landscapes with ease. To fully leverage this tool, it’s essential to prepare your model accordingly. In this case, we broke down the landscape into different chunks, each with distinct colors. This segmentation is crucial because it directly correlates with how the scatter tool will apply different landscape elements, such as trees and bushes, across the scene.
Additionally, we set up a reflective landscape on the opposite side of the pavilion to enhance the visual effect of reflections in the glass. This small detail can make a significant difference in the realism of your final render.
Once your model is complete, save your work in SketchUp and get ready to import it into D5 Render, where the real magic begins.
Section 2: Importing and Initial Setup in D5 Render
Importing the Model
With your SketchUp model ready, it’s time to bring it into D5 Render to start the visualization process. Begin by launching D5 Render and selecting the Import option at the top. Once you’ve located your SketchUp file, import it into D5. After importing, you might notice that the model doesn’t automatically appear on the canvas. To resolve this, simply click on the canvas to place the model and ensure it’s correctly positioned.
One of the first things you’ll want to do after importing is to switch from Importer to Object mode. This allows you to refresh the geometry and make any necessary adjustments to the model’s placement. By doing this early on, you can avoid issues later in the rendering process.
Setting Up the Camera and Scene
Before diving into materials and effects, it’s crucial to establish your main camera view. Drop down to a perspective that best showcases your model—this will serve as the foundation for all subsequent adjustments. Set the focal length to around 30mm, which provides a balanced field of view that captures both the structure and the surrounding environment effectively.
Once you’ve settled on a view, hit Create New Scene. This locks in your chosen perspective, making it easy to return to this view as you continue to refine the model. This step is especially useful when making adjustments to materials and lighting, as it allows you to maintain consistency throughout the visualization process.
Basic Scene Adjustments
With your scene set, you can start making some basic adjustments to enhance the overall look. First, tweak the focal length if necessary, and ensure the Two-Point Perspective is turned on to keep vertical lines straight—this is particularly important in architectural renders to maintain realism.
You can also adjust the exposure settings to achieve the desired lighting effect. While these initial adjustments might seem minor, they lay the groundwork for a polished final render. Save your scene setup so that any changes you make to the model or environment can be previewed and refined without losing your original setup.
This preparation phase is key to a smooth workflow in D5 Render, allowing you to move seamlessly into the next stage—applying materials and bringing your scene to life.
Section 3: Using D5 Scatter Tool to Enhance Landscapes
Understanding the Scatter Tool
One of the standout features in D5 Render is its scatter tool, which allows you to create rich, detailed landscapes with minimal effort. Unlike traditional methods where you place each tree or bush manually, the scatter tool enables you to populate large areas with a variety of vegetation quickly and efficiently. This tool is not only user-friendly but also incredibly powerful, making it a game-changer for anyone working on architectural visualizations.
The scatter tool works by applying selected vegetation across predefined areas in your model. By segmenting your landscape into different colored chunks during the SketchUp phase, you’ve set the stage for using the scatter tool effectively. Each segment corresponds to a different layer of vegetation, which can vary in density and type, depending on the look you’re going for.
Applying Scatter Presets

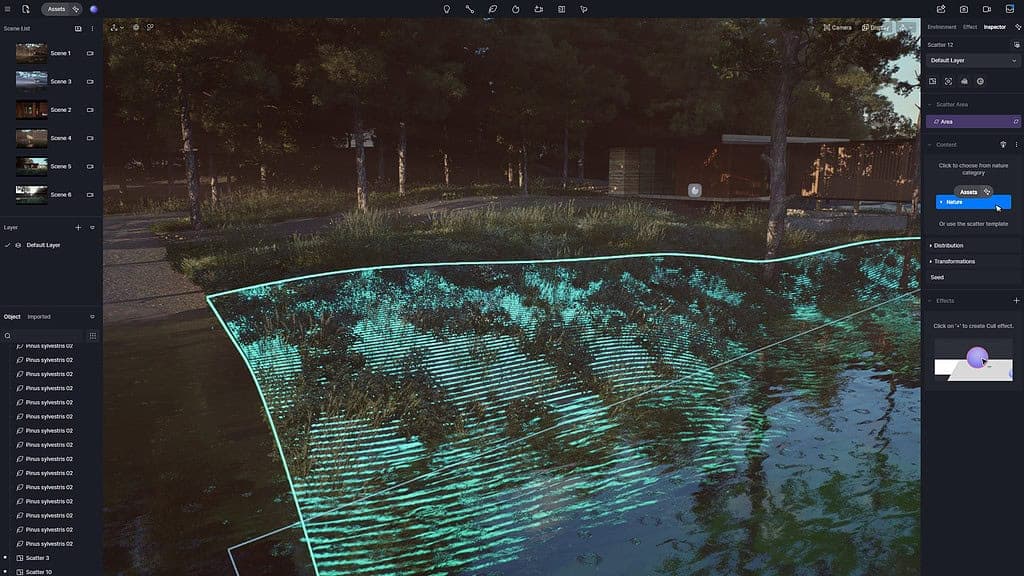

To begin using the scatter tool, select the Scatter by Material option. D5 Render will highlight the segments of your landscape that correspond to the different materials you’ve applied. After selecting the segments you want to populate, click Create. This action generates scatter panels that allow you to fine-tune the distribution of your selected vegetation.
Next, head over to the Asset Library and choose from a range of vegetation presets. For instance, if you want to create a dense backdrop of trees, select a variety of tree types that complement your scene. D5 Render’s scatter tool automatically applies random scaling and rotation to the trees, adding a natural variety that mimics real-world environments.
You can further adjust these settings by modifying the scaling range or rotation values, which controls the size and angle of each tree. If you prefer a less uniform appearance, you can also change the randomization seed to shuffle the arrangement of the vegetation. This is particularly useful when you’re looking to break up any patterns that might appear too regular.
Layering and Customizing Vegetation
One of the most powerful aspects of the scatter tool is its ability to layer different types of vegetation. For example, you can create an initial layer of tall trees to serve as a backdrop, then add another layer of smaller trees or bushes to fill in the middle ground. For the foreground, consider using lower-density plants or even a custom mix of grasses and small shrubs.
In addition to trees, D5 Render offers presets for other types of vegetation, such as waterside shrubbery or wild grassland. By layering these presets, you can create a landscape with rich depth and complexity, giving your scene a highly realistic appearance.
Another useful feature is the ability to scatter objects like stones or fallen leaves, which adds even more detail to your landscape. These smaller elements can be applied with the same scatter tool, allowing for consistent and seamless integration into your scene.
By the end of this process, you’ll have a lush, dynamic landscape that enhances the overall realism of your architectural visualization. The scatter tool in D5 Render truly simplifies what used to be a time-consuming task, enabling you to focus more on the creative aspects of your project.
Section 4: Fine-Tuning Materials and Lighting
Bespoke Materials

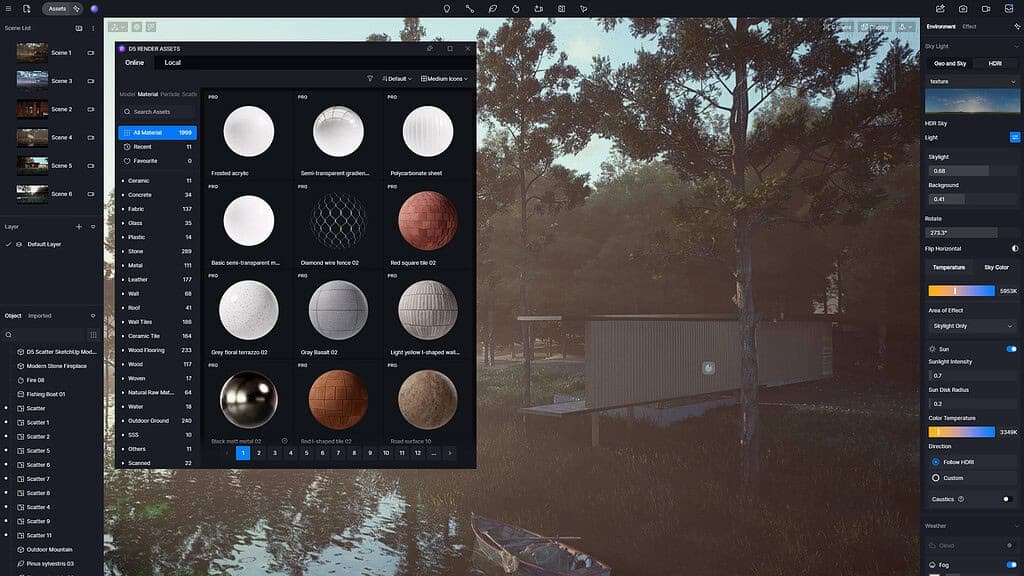

Now that your landscape is taking shape, it’s time to fine-tune the materials to ensure your scene looks as realistic as possible. D5 Render offers a range of options to customize materials, from adjusting textures to tweaking reflection and gloss settings.
Start by selecting the materials you want to refine. For example, if you’re working on a timber-clad structure, you might want to enhance the wood grain by adjusting the UV settings. Lowering the UV scale increases the size of the texture, making the grain more pronounced. Additionally, make sure the base color is set to white or fully desaturated to avoid any unwanted color influence on the texture.
Next, consider adding a normal map to give the surface more depth. This is particularly effective for materials like concrete, where a rough, uneven surface can add realism. In D5 Render, you can also apply a round corner effect to soften the edges of your materials, which is crucial for avoiding the overly sharp, unrealistic edges that can detract from the overall scene.
For materials like metal, it’s often a good idea to clear the diffuse map and use a solid color instead. This gives you more control over the material’s appearance, particularly when adjusting the reflection and gloss settings. Similarly, for glass materials, adjusting the transparency and reflection levels can make a significant difference in how light interacts with the surface.
Lighting and Environmental Effects
Lighting plays a crucial role in setting the mood and realism of your scene. D5 Render provides several tools to help you create the perfect lighting environment, starting with its curated list of environment presets. These presets range from bright, sunny days to dramatic sunsets, allowing you to quickly change the atmosphere of your scene.
To apply a preset, simply navigate to the Studio tab and select one that suits your scene. For instance, if you’re aiming for a warm, late-afternoon glow, a sunset preset might be ideal. After applying the preset, you can further refine the lighting by adjusting the sun’s position. This is important not only for casting shadows in the right direction but also for creating effects like God rays, where sunlight beams through openings, adding a dramatic touch to your visualization.
In addition to the environment settings, D5 Render offers tools for adding effects like fog, wind, and precipitation. For example, increasing the fog density can add a subtle haze to your scene, softening distant objects and enhancing the depth of field. This is particularly effective in outdoor scenes where you want to create a sense of distance.
You can also adjust the scattering of light within the fog to create beautiful, diffused lighting effects. By carefully balancing these settings, you can achieve a mood that complements the architectural elements of your scene, whether it’s a crisp, clear morning or a moody, overcast evening.
Another advanced feature in D5 Render is the ability to adjust the volume light scattering. This effect, often referred to as volumetric lighting, occurs when light passes through a medium like fog or dust, creating visible light beams. Increasing the scattering intensity can enhance this effect, making it more pronounced and adding to the realism of your scene.
Finally, don’t forget to save your settings frequently as you fine-tune the materials and lighting. D5 Render’s real-time preview feature allows you to see changes instantly, making it easier to iterate and perfect your scene.
Section 5: Rendering and Post-Production
Rendering Still Images
With your scene fully set up, it’s time to render some high-quality still images. This step is crucial for showcasing your work, whether it’s for client presentations, portfolios, or marketing materials. D5 Render makes this process straightforward, with options that allow you to customize the final output to suit your needs.
First, select the camera view you want to render. It’s important to ensure that your Two-Point Perspective is on, which will keep vertical lines straight and maintain a professional, polished look in architectural renders. Next, head to the Camera Settings where you can adjust the resolution. For a cinematic look, consider setting a wide aspect ratio, such as 4000×2000 pixels. This creates a more dramatic and visually engaging image.
Before you hit render, take a moment to refine the exposure settings. This ensures that your image isn’t too dark or too washed out. If you’re aiming for a specific mood, like a sunset or overcast day, these settings can help you achieve the perfect balance of light and shadow.
Once you’re satisfied with the setup, click Render and let D5 Render do the rest. The software’s powerful engine processes images quickly, allowing you to produce high-resolution stills in a matter of minutes. These images can then be saved directly to your computer, ready for post-production or immediate use.
Refining the Scene
After rendering, it’s time to critically evaluate your images. While the initial renders may look impressive, there’s always room for improvement. Start by examining the materials—are there any repetitive patterns that stand out? If so, consider tweaking the UV settings or using the UV Randomizer to break up these patterns. This small adjustment can make a significant difference in the overall realism of your scene.
Next, look at the landscaping. The scatter tool in D5 Render is powerful, but sometimes manual adjustments are necessary. For example, adding specific elements like fallen leaves, stones, or small debris can enhance the realism of paths and outdoor areas. You can scatter these elements manually or use the scatter tool’s advanced settings to control their distribution more precisely.
Additionally, consider the backdrop of your scene. D5 Render offers various environment assets, such as mountains or distant trees, that can be scaled and positioned to eliminate any visible horizon lines. This ensures that your scene feels fully immersive and visually complete.
Once you’ve made these final tweaks, render the scene again if necessary, and review the outcome. The goal is to achieve a polished, professional render that not only looks good but also tells a story through its composition, lighting, and attention to detail.
Section 6: Practical Applications and Business Impact
Visualization as a Business Tool
Architectural visualization is not just about creating beautiful images; it’s also a powerful business tool that can significantly impact your practice. Tools like D5 Render have revolutionized the way architects and designers approach their work, making it easier to explore, present, and refine designs in real-time.
One of the most significant advantages of using D5 Render is its ability to enhance your project presentations. High-quality, photorealistic renders can communicate your vision more effectively to clients, stakeholders, and colleagues, helping them to understand and engage with your designs. This can lead to quicker approvals, more informed decisions, and ultimately, a smoother project process.
Moreover, the efficiency of D5 Render allows you to iterate designs rapidly. You can test different materials, lighting setups, and landscape configurations without the need for extensive manual adjustments. This speed and flexibility not only improve your design process but also increase your productivity, allowing you to take on more projects or dedicate more time to refining the details that make your work stand out.
In addition to these practical benefits, high-quality visualizations can also enhance your marketing efforts. Stunning visuals are more likely to attract attention on social media, in portfolios, and in project proposals. They demonstrate your capability to potential clients and can be a deciding factor in winning new business.
Conclusion
Mastering tools like D5 Render can truly elevate your architectural visualizations, transforming them from mere representations to immersive, compelling experiences. From setting up your initial model and applying materials to fine-tuning the lighting and rendering the final scene, each step is crucial in creating visuals that not only look great but also serve as powerful communication tools.
But why stop here? At Archademia, we offer comprehensive courses on D5 Render, architectural visualization, design, project management, and much more. Our expert-led tutorials are designed to help you advance your skills, whether you’re a beginner or looking to refine your expertise.
Sign up today at Archademia to gain access to a wealth of knowledge and join a community of professionals who are passionate about pushing the boundaries of design and visualization. By joining, you’ll not only improve your skills but also enhance your ability to deliver exceptional results in your projects.
Don’t forget to like and subscribe to our YouTube channel for more tutorials and tips, and feel free to reach out with any questions or feedback. Together, we can create something extraordinary.
